Flexible Conduit

Flexible Conduit – Metallic

Steel Flexible Conduit

  • Product: Pre-Glavanized Steel flexible conduit
  • Properties: Highly flexible steel conduit offerrs excellent mechanical protection provides strong protection for cables
  • Temperature range: -250 to + 750 C
  • Constraction: Ideal for general wiring installation and provides good flexible bending and vibration applications
Item Code Size (MM) Coil Packing (M)
G-16 16 20
G-20 20 20
G-25 25 20
G-32 32 15
G-40 40 15
G-50 50 10

*Other Sizes Can Be Supplied Upon Request

PVC Coated Steel Flexible Conduit

  • Pre-Galvanized Steel flexible conduit with PVC Coating
  • PVC color: Black ( Grey available upon request )
  • IP Rating: IP 54
  • Features: Highly Flexible, High impact strength and low Smoke Density
  • Jacket Properties: heat retardant self-extinguishing PVC Coating
  • Temperature range -25°C to +75°C
  • Constraction: As per BS EN 61386-23, helically wound single lock galvanized steel core with enchanced low acid PVC Coating.
  • Can be used for mechanical protection of cable and wires in tunnels, Hospitals, High rise bulding and underground
Item Code Size (MM) Coil Packing (M)
GP-16 16 20
GP-20 20 20
GP-25 25 20
GP-32 32 15
GP-40 40 15
GP-50 50 10

*Other Sizes Can Be Supplied Upon Request

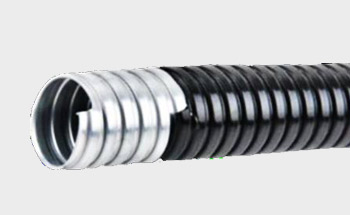

PVC + LSZH STEEL FLEXIBLE CONDUIT

  • Product: Pre-Galvanized Steel flexible conduit with Low Smoke Zero Halogen + PVC Coating.
  • Properties: Heat resistant, LSZH free PVC coating.
  • Jacket Color: Black (Grey also available upon request)
  • Temperature Range: -25°C to +105°C
  • IP Rating: IP54
  • Construction: As per BS EN 61386-23, helically wound single lock Galvanized steel Conduit with PVC+LSZH Coating.
  • Coating Features: Do not emit Hazardous Gases when Heated or in Flames. Highly Flexible, High impa Strength and Low Smoke Density. Can be used for Mechanical Protection of Cables and Wires in Tunnels, Hospitals, High Rise Buildings and Underground.
Item Code Size (MM) Coil Packing (M)
GPL-16 16 20
GPL-20 20 20
GPL-25 25 20
GPL-32 32 15
GPL-40 40 15
GPL-50 50 10

*Other Sizes Can Be Supplied Upon Request

LIQUID TIGHT PVC COATED STEEL FLEXIBLE CONDUIT

  • Product: Liquid Tight Pre-Galvanized Steel conduit with PVC Jacket.
  • Properties: Excellent mechanical strength with flexible capabilities, this jacket is resistant to oil, acid, and sea water.
  • PVC color: Black (Grey also available upon request)
  • Temperature range: -25°C to +75° C.
  • IP Rating: IP 67 (When installed with suitable liquid tight adaptor).
  • Construction: As per BS EN 61386-23, Helically wound single lock Galvanized steel Conduit with Cotton Filling and PVC Coating.
  • Features: Complete Protection against most Liquid and Moisture Vapor.
Item Code Size (MM) Coil Packing (M)
GP-LT-16 16 20
GP-LT-20 20 20
GP-LT-25 25 20
GP-LT-32 32 15
GP-LT-40 40 15
GP-LT-50 50 10

*Other Sizes Can Be Supplied Upon Request

PVC + LSZH LIQUID TIGHT FLEXIBLE CONDUIT

  • Product: Liquid tight Pre-Galvanized Steel flexible conduit with Low Smoke Zero Halogen PVC jacket.
  • Properties: Excellent mechanical strength with flexible capabilities, this jacket is resistant to oil, acid, sea water, heat, low smoke, and halogen free.
  • PVC color: Black (Grey also available upon request)
  • Temperature range: -25°C to +105° C
  • IP Rating: IP 67 (When installed with suitable liquid tight adaptor)
  • Resistance to Flame: Flame dies in 30 seconds after ignition source is removed
  • Construction: As per BS EN 61386-23, Helically wound single lock Galvanized steel Conduit with Cotton Filling and LSZH PVC Coating.
  • Features: Complete Protection against most Liquid and Moisture Vapor
Item Code Size (MM) Coil Packing (M)
GPL-LT-16 16 20
GPL-LT-20 20 20
GPL-LT-25 25 20
GPL-LT-32 32 15
GPL-LT-40 40 15
GPL-LT-50 50 10

*Other Sizes Can Be Supplied Upon Request

Flexible Conduit – Non-Metallic

PVC FLEXIBLE CONDUIT

  • Product: PVC- Self Extinguishing
  • Temperature range: -25°C to +60° C
  • Standard: BS EN 61386
Item Code Size Coil Packing (M)
PVC-16 16 100
PVC-20 20 100
PVC-25 25 50
PVC-32 32 50
PVC-40 40 50
PVC-50 50 25

*Other Sizes Can Be Supplied Upon Request

POLYETHYLENE FLEXIBLE CONDUIT

  • Product: Polyethylene – Halogen Free
  • Temperature range: -25°C to +60° C
  • Standard: BS EN 61386
  • Properties: Self-Extinguishing and free from Halogen, Cadmium, Sulphur & Phosphorous, UV resistant, LSOH (Low Smoke Zero Halogen), highly Resistant to Solvents, Oils, Greases, Acids & bases.
Item Code Size Coil Packing (M)
PE-16 16 100
PE-20 20 100
PE-25 25 50
PE-32 32 50
PE-40 40 50
PE-50 50 25

*Other Sizes Can Be Supplied Upon Request

POLYAMIDE FLEXIBLE CONDUIT

  • Product: Polyamide 6
  • Temperature range: -40°C to +120° C
  • IP Rating: IP 68
  • Standard: BS EN 61386
  • Properties: flexible & excellent tenacity, resistance to oil, acid & solvents, Ant-friction, UV-resistant, free of halogen, phosphor & cadmium
  • Application: machine, automotive, robots, ship & railway industries
Item Code Size Coil Packing (M)
PA-16 16 100
PA-20 20 100
PA-25 25 50
PA-32 32 50
PA-40 40 50
PA-50 50 25

*Other Sizes Can Be Supplied Upon Request

POLYPROPYLENE FLEXIBLE CONDUIT

  • Product: Polypropylene
  • Temperature range: -40°C to +95° C
  • IP Rating: IP 68
  • Standard: BS EN 61386
  • Properties: Self-Extinguishing and free, UV resistant, LSOH ( Low Smoke Zero Halogen)
Item Code Size Coil Packing (M)
PP-16 16 100
PP-20 20 100
PP-25 25 50
PP-32 32 50
PP-40 40 50
PP-50 50 25

*Other Sizes Can Be Supplied Upon Request
